Motormate Outboard Transom Saver Locking Systems


Tow With Confidence

The MotorMate locking system fits most Evinrude, Johnson, Mercury and Yamaha outboard motors. The motormate can be mistaken for a transom saver, motor toter, or swivel bar but in fact it is an outboard motor locking system. MotorMate is the single best way to protect an outboard motor transom, steering cables and hydraulics during transport of a boat and outboard motor.

Protect Your Investment


Protect your investment in an outboard motor while towing a boat on the highway and off-road. MotorMate keeps the outboard motor from bouncing and jostling that may inflict collateral damage to the engine’s steering cables, hydraulic lines, housing and finishing. An outboard motor is a major investment and protecting it while towing to and from the water is a top priority. The MotorMate locking system locks the outboard motor in place preventing costly damage to the steering system and excess torque on the transom. MotorMate also releases the pressure on the hydraulic system.

Guy Eakers, Ott Defoe, Bryan Thrift, Randall Tharp, Aaron Martens, Stephen Browning, Timmy Horton and Jason Christies are just a few of the Elite Series and FLW pro’s who rely on Motormate Locking Systems to protect their motors and transoms when traveling across the Country.




Motormate Locking Systems Mercury - C$139.99


Motormate # 201



Motormate # 202




Motormate # 203



Motormate # 203 Red


Please Note: Please measure the lower unit of your motor before purchase. Direct any questions to Motormate customer service: 1-844-668-6768 or consult there Select Your Motormate webpage

Your outboard motor is a major investment, and protecting it while transporting it to the water should be a top priority.  The Motormate Mercury Locking System locks most Mercury 2-Stroke outboard motors in place, preventing costly damage to your steering system and excess torque on your transom. The Motormate Locking System also releases pressure off your hydraulic system.

10-201-SSB - 2-stroke motors, fits 75-115hp

10-202-SSB
- 2-stroke motors, fits 125hp-175hp & 200hp-Carborated,

Fits late model Optimax PROXS series 115HP - 175HP

10-203-SSB - 2-stroke motors, fits 225hp-300hp & 200hp EFI,

Fits late model Optimax PROXS series 200HP - 250HP

NEW! - Now available in Red


Model
Yoke (A)
Transom Mount (B)
#201
3.42" 7.44"
#202
3.12"
7.44"
#203
4.56"
7.44"

Yoke Dimensions - Measured from center to center of Motormate prongs. Span the distance between the motor contact points, securing the Motormate to the motor drive shaft housing.

Transom Mount Dimensions - Measured from the inside edges of the stern brackets.


Model

Motormate Locking Systems Evinrude/Johnson - C$139.99


Motormate # 101


Motormate # 101 Blue




Motormate # 102

$169.99


Please Note: Please measure the lower unit of your motor before purchase. Direct any questions to Motormate customer service: 1-844-668-6768 or consult there Select Your Motormate webpage


Your outboard motor is a major investment, and protecting it while transporting it to the water should be a top priority.  The Motormate Johnson/Evinrude Locking System locks most Johnson & Evinrude 2-Stroke outboard motors in place, preventing costly damage to your steering system and excess torque on your transom. The Motormate Locking System also releases pressure off your hydraulic system.

10-101-SSB - 2-stroke motors, fits most years 1991-2010, 85HP-250HP Models,

Fits late model 90hp-150hp standard Etech series

Fits late model 90hp-250hp HO series

NEW! - Now available in blue

10-102-SSB - EVINRUDE E-TEC G2 - 225-300hp & 200-250hp HO.

Model
Yoke (A)
Transom Mount (B)
#101
4.5"
6.25"
#102 N/A  N/A

Yoke Dimensions - Measured from center to center of Motormate prongs. Span the distance between the motor contact points, securing the Motormate to the motor drive shaft housing.

Transom Mount Dimensions - Measured from the inside edges of the stern brackets.


Model

Motormate Locking Systems Yamaha - $169.99

Motormate #300


Motormate #300A


Motormate #300B


Motormate #300C


Motormate #301



Motormate #302


Motormate #303


Motormate #303A


Please Note: Please measure the lower unit of your motor before purchase. Direct any questions to Motormate customer service: 1-844-668-6768 or consult there Select Your Motormate webpage

Your outboard motor is a major investment, and protecting it while transporting it to the water should be a top priority.  The Motormate Yamaha Locking System locks most Yamaha outboard motors in place, preventing costly damage to your steering system and excess torque on your transom. The Motormate Locking System also releases pressure off your hydraulic system.

10-300-SSB - 4-stroke motors, fits 115hp-175hp through 2014. Stainless Steel mounting brackets included.

10-300A-SSB - 4-stroke motors fits 90hp. Stainless Steel mounting brackets included.

10-300B-SSB - 4-stroke motors fits 70hp. Stainless Steel mounting brackets included.

10-300C-SSB - 4-stroke motors fits 60hp. Stainless Steel mounting brackets included.


10-301-SSB - 2-stroke motors fits 115hp-175hp. Stainless Steel mounting brackets included.

10-302-SSB - 2-stroke motors, fits 200hp - 250hp (excluding yrs. 00 - 04). Stainless Steel mounting brackets included.

10-303 SHO-SSB - 4-stroke motors, fits most current 200hp - 250hp SHO models. Stainless Steel mounting brackets included. (20 inch shaft only)

10-303A SHO-SSB - 4-stroke motors, fits most current 150hp SHO models. Stainless Steel mounting brackets included. (20 inch shaft only)

10-303B SHO-SSB - 4-stroke, 115 SHO w/Stainless Steel mounting brackets included. (20" transom only)

Model
Yoke (A)
Transom Mount (B)
#300 4.75" 8.25"
#300A 4.00" 8.25"
#300B
2.00" 7.62"
#300C
3.88"
7.62"
#301
3.75"
8.25"
#302
6.00"
8.25"
#303
5.88"
7.75"
#303A 4.75" 7.75"
#303B 4.75" 7.75"

Yoke Dimensions - Measured from center to center of Motormate prongs. Span the distance between the motor contact points, securing the Motormate to the motor drive shaft housing.

Transom Mount Dimensions - Measured from the inside edges of the stern brackets.


Model



Motormate Locking Systems Honda - $139.99

Motormate #401


Please Note: Please measure the lower unit of your motor before purchase. Direct any questions to Motormate customer service: 1-844-668-6768 or consult there Select Your Motormate webpage

Your outboard motor is a major investment, and protecting it while transporting it to the water should be a top priority.  The Motormate Honda Locking System locks most Honda outboard motors in place, preventing costly damage to your steering system and excess torque on your transom. The Motormate Locking System also releases pressure off your hydraulic system.

10-401-SSB - 4-stroke, Fits most 90-150hp.

Model
Yoke (A)
Transom Mount (B)
#401
3.12"
7.19"

Yoke Dimensions
- Measured from center to center of Motormate prongs. Span the distance between the motor contact points, securing the Motormate to the motor drive shaft housing.

Transom Mount Dimensions
- Measured from the inside edges of the stern brackets.

Select Your Motormate


MotorMate has several brackets that are used with Yamaha motors. It is important  that the correct bracket be used. The Yamaha bracket template is to be used to test fit the Yamaha bracket. Before ordering a MotorMate, print off the sheet and follow the instructions. Yamaha Bracket Template. Contact MotorMate  if the template does not fit your Yamaha.

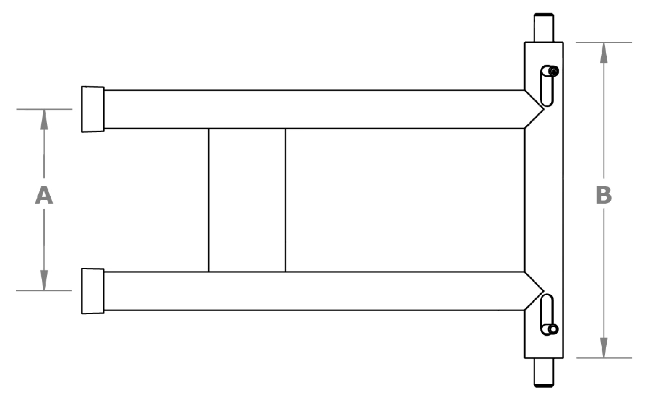

It is necessary to confirm the spacing of the contact points on the outboard motor and the edges of the stern brackets are the same as A and B in accordance with the chart to the left.

The motor yoke spacing is the Center to Center distance between the motor contact points securing the MotorMate to the motor drive shaft housing. Reference Image A.

The Evinrude, Johnson and Mercury transom mount spacing is measured between the inside edges of the stern brackets. Reference Image B.

The Yamaha transom mount spacing is measured across the outside edges of the stern brackets. Reference Image B. The correct MotorMate model is selected using the chart to identify the A and B dimensions for the motor contact points and the edges of the stern brackets.
